| Voltage | 100V~120V 60HZ/220V~240V 50HZ |
| Power | 1.08HP (800W) |
| Cable Length | 3.94Feet (1.2m) |
| Max Vertical Lift | 29.5 Feet (9m) |
| Maximum Horizontal Lift | 295 Feet (90m) |
| Max Flow | 2202GPH (8400 L/H) |
| Material | Stainless Steel + Plastic |
| Item Weight | 21lbs (9.5KG) |
| Inlet Pipe Size | 3-1/2'~4-1/3'',1-1/4'' (90~110mm, 40mm) |
| Outlet Pipe Size | 1'',1-1/4'',1-1/2'' rigid pipe (25mm, 32mm, 38mm rigid pipe) |
| Product Dimensions | 18.9''x8.7"x16.1" (48x22x41cm) |
| Noise Level | 39 db |
| Protection Class | IPX4 |
The FL0800 Pro pump is exclusively reserved for indoor use. The macerator pump system of the appliance is integrated in a special way, which is only suitable for toilets with a horizontal outlet. For the proper operation of thegrinder it is necessarily important to follow the installation and maintenance instructions in this manual.
When properly installed and maintained according to the instructions inthis user manual, the appliance is very powerful, safe and reliable.Users for commercial or industrial purposes should be avoided. The appliance goes to working status in every 10 seconds.The macerator pump starts automatically when a certain water level is reached.

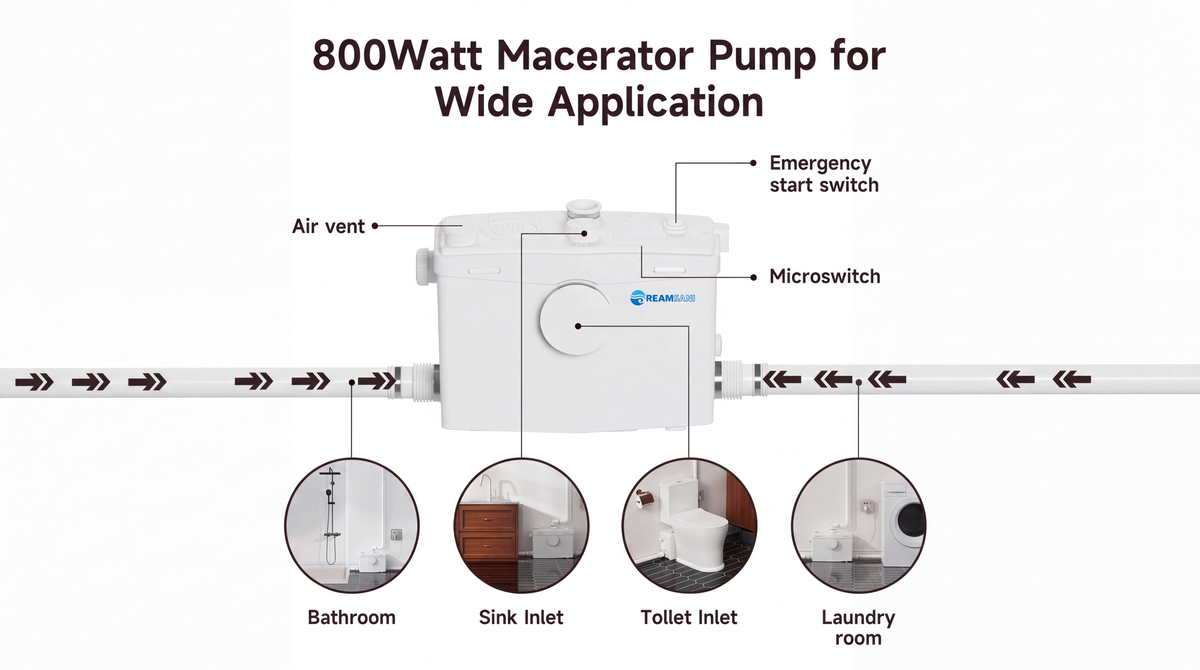

FL0800 Pro is specially to connect with:
· WC
· Wash basin
· Bidet
· ShowerWashing machine
· Kitchen
· Urinal
-
FAQ‘s
-
Where is this product used?
If you need to build a bathroom, it would be very uneconomical to use traditional methods such as raising the floor, big construction etc.
Our product solves this problem perfectly. That is that you can easily install the whole bathroom where you want it to be. Whether you set your bathroom in a basement, garage or a storage room, all it’s no problem. The pump can transport sewage to the septic tank directly.
-
How does a sump pump work? Or what is the working principle?
When the sewage enters the pump and reaches a certain height, the pressure of water will starting the motor, the pump will start automatically. It can raise the sewage by 7 meters or push it horizontally by 70 meters. There is no problem even if you set the bathroom on the 2nd basement level.
In addition, it has a built-in impeller blade that cuts feces and toilet paper into small particles and discharges them. It will not clog the pipe.
-
What bathroom equipment can be connected?
It can be connected not only to a toilet, but also to a sink, shower or bathtub.
-
Can it be connected to a normal toilet?
It can only be connected to a P-trap toilet. It's rear-facing toilet.
